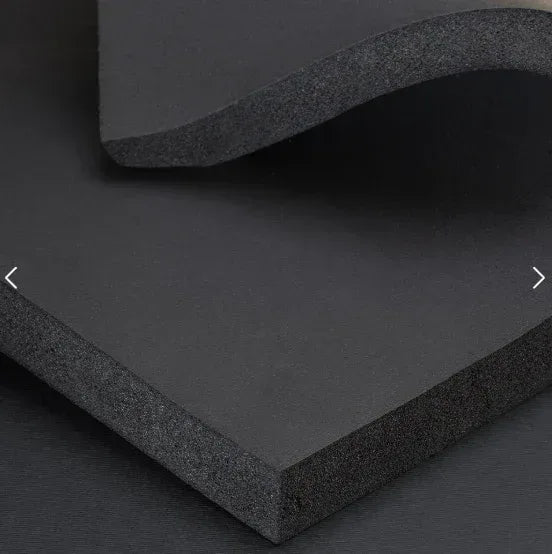

10mm K-FLEX SOLAR HT Sheet Insulation - 20m² Roll (1m × 20m)

High-Temperature EPDM Elastomeric Sheet Insulation

K-FLEX® SOLAR HT 10mm sheet insulation is specifically engineered for solar thermal systems and industrial high-temperature applications up to 150°C where standard elastomeric insulation cannot perform. Supplied as a 20m² roll (1 metre wide × 20 metres long).

Technical Specifications:

• Thickness: 10mm
• Roll size: 20m² (1m width × 20m length)
• Temperature range: -40°C to +150°C
• Material: EPDM (Ethylene-Propylene Diene Monomer) rubber
• Thermal conductivity: λ = 0.040 W/(m·K) at 0°C, 0.044 W/(m·K) at 40°C
• Fire rating: Euroclass E (EN 13501-1)
• UV resistance: Excellent - suitable for outdoor exposed installations
• pH neutral: Non-corrosive to surfaces

Key Features:

• UV-protected EPDM for long-term outdoor durability
• Closed-cell structure for superior moisture resistance
• Flexible sheet format for flat surfaces, tanks, and irregular shapes
• Easy to cut and fit on-site
• Increased energy efficiency in solar collectors and high-temperature systems
• CFC and HCFC free - environmentally responsible
• EPD certified (Environmental Product Declaration)

Applications:

• Solar thermal collectors and panels
• Industrial tanks and vessels
• Flat ductwork and equipment
• Heat pump installations
• Irregular surfaces requiring custom cutting
• Outdoor exposed installations requiring UV stability

The ideal solution where conventional elastomeric insulation reaches its temperature limits, combining flexibility and moisture resistance with enhanced thermal stability for demanding solar and industrial applications.
