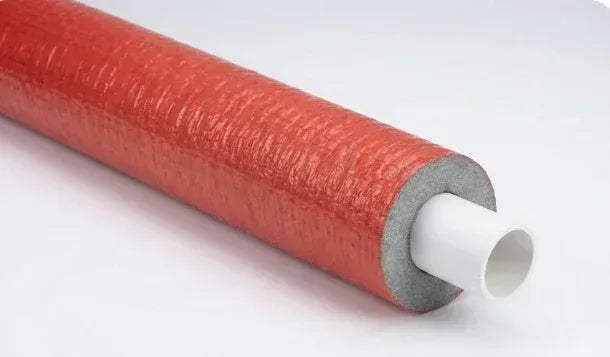

6×28 K-FLEX PE COLOR Tube Insulation - Red - 2m

K-FLEX PE COLOR Polyethylene Tube Insulation

Co-extruded polyethylene closed cell insulation tube with colored protective outer layer, specifically designed for applications requiring additional mechanical protection and easy visual identification of pipe systems.

🔴 RED OUTER LAYER: The durable red co-extruded outer layer provides enhanced mechanical protection and makes it easy to identify hot water or heating system pipelines on site.

Technical Specifications

• Wall Thickness: 6mm
• Bore Size: 28mm
• Length: 2 metres per tube

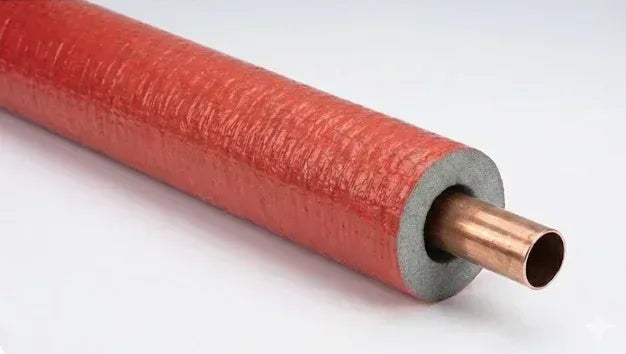

• Copper Tube Ø: 28mm (DN 25, 3/4")
• Iron Tube Ø: 26.9mm (DN 20)
• Carton Quantity: 120 metres per carton (60 lengths)
• Color: Red outer protective layer

Technical Data

• Temperature Range: -40°C to +100°C (EN 14707)
• Thermal Conductivity λ: 0.036 W/(m•K) at +10°C | 0.040 W/(m•K) at +40°C (EN ISO 8497)
• Corrosion Prevention: pH neutral (7)
• Fire Rating: Euroclass DL-s1, d0 (EN 13501-1)
• Ecological: Without CFCs and HCFCs

Packaging & Shipping

• Sold individually as 2m lengths
• May be bent to facilitate shipping

Key Features

• Co-extruded colored outer layer for mechanical protection
• Easy visual identification of pipe systems
• Closed-cell structure prevents moisture ingress
• Excellent thermal insulation properties
• Easy to install and cut to size
• Suitable for temperatures from -40°C to +100°C
• Complies with European standards
• CFC and HCFC free

Applications

• Indoor heating systems (hot water pipes)
• Domestic hot and cold water supply
• Indoor plumbing installations
• Underfloor heating applications
• Ventilation and air conditioning
• Equipment insulation

Other Colors Available

This product is also available in Blue for cold water or alternative system identification.

📄 View Technical Documentation
